Switched Interlocked Sockets
IES distribute Switched Interlocked Sockets and a range of industrial Plugs & Sockets.
Plugs and Sockets are tested and certified in compliance with the following international and national standards among others: IEC 60 309-2, IEC 60 309-1, SS EN 60309-2, CEE17, SEMKO 117, VDE 0623, BS 4343, EN 50 250.

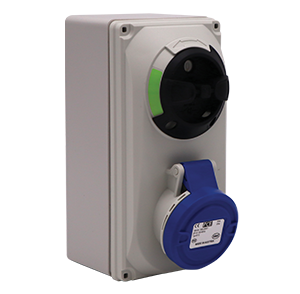

IP44 SPLASHPROOF SWITCHED INTERLOCKED SOCKET 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | UB 216-4 |
| 240 | 2P+E | UB 216-6 | |
| 415 | 3P+E | UB 316-6 | |
| 415 | 3P+N+E | UB 416-6 |
IP44 SPLASHPROOF SWITCHED INTERLOCKED SOCKET 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | UB 232-4 |
| 240 | 2P+E | UB 232-6 | |
| 415 | 3P+E | UB 332-6 | |
| 415 | 3P+N+E | UB 432-6 |
IP67 WATERPROOF SWITCHED INTERLOCKED SOCKET 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | UBV 216-4 |
| 240 | 2P+E | UBV 216-6 | |
| 415 | 3P+E | UBV 316-6 | |
| 415 | 3P+N+E | UBV 416-6 |

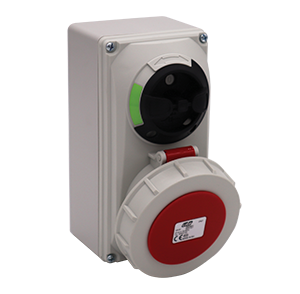

IP67 WATERPROOF SWITCHED INTERLOCKED SOCKET 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | UBV 232-4 |
| 240 | 2P+E | UBV 232-6 | |
| 415 | 3P+E | UBV 332-6 | |
| 415 | 3P+N+E | UBV 432-6 |
IP67 WATERPROOF SWITCHED INTERLOCKED SOCKET 63 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 63 | 110 | 2P+E | UBV 263-4 |
| 240 | 2P+E | UBV 263-6 | |
| 415 | 3P+E | UBV 363-6 | |
| 415 | 3P+N+E | UBV 463-6 |
IP67 WATERPROOF SWITCHED INTERLOCKED SOCKET 125 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 125 | 110 | 2P+E | UBV 2125-4 |
| 240 | 2P+E | UBV 2125-6 | |
| 415 | 3P+E | UBV 3125-6 | |
| 415 | 3P+N+E | UBV 4125-6 |
