Connectors

IES distribute Connectors and the GARO range of industrial Plugs & Sockets.

GARO Plugs and Sockets are tested and certified in compliance with the following international and national standards among others: IEC 60 309-2, IEC 60 309-1, SS EN 60309-2, CEE17, SEMKO 117, VDE 0623, BS 4343, EN 50 250.

IP44 SPLASHPROOF CONNECTOR 16 AMP

AMPS VOLTS PINS IES PART NO.
16 110 2P+E S 216-4
240 2P+E S 216-6
415 2P+E S 216-9
110 3P+E S 316-4
415 3P+E S 316-6
240 3P+E S 316-9
110 3P+N+E S 416-4
415 3P+N+E S 416-6
240 3P+N+E S 416-9
415 6P+E S 616-6

IP44 SPLASHPROOF CONNECTOR 32 AMP

AMPS VOLTS PINS IES PART NO.
32 110 2P+E S 232-4
240 2P+E S 232-6
415 2P+E S 232-9
110 3P+E S 332-4
415 3P+E S 332-6
240 3P+E S 332-9
110 3P+N+E S 432-4
415 3P+N+E S 432-6
240 3P+N+E S 432-9

IP44 SPLASHPROOF CONNECTOR 63 AMP

AMPS VOLTS PINS IES PART NO.
63 110 2P+E S 263-4
240 2P+E S 263-6
415 2P+E S 263-9
110 3P+E S 363-4
415 3P+E S 363-6
240 3P+E S 363-9
110 3P+N+E S 463-4
415 3P+N+E S 463-6
240 3P+N+E S 463-9

IP67 WATERTIGHT CONNECTOR 16 AMP

AMPS VOLTS PINS IES PART NO.
16 110 2P+E SV 216-4
240 2P+E SV 216-6
415 2P+E SV 316-9
415 3P+N+E SV 416-6

IP67 WATERTIGHT CONNECTOR 32 AMP

AMPS VOLTS PINS IES PART NO.
32 110 2P+E SV 232-4
240 2P+E SV 232-6
415 2P+E SV 332-9
415 3P+N+E SV 432-6

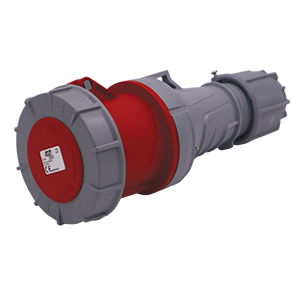

IP67 WATERTIGHT CONNECTOR 63 AMP

AMPS VOLTS PINS IES PART NO.
63 110 2P+E SV 263-4
240 2P+E SV 263-6
415 2P+E SV 363-9
415 3P+N+E SV 463-6

IP67 WATERTIGHT CONNECTOR 125 AMP

AMPS VOLTS PINS IES PART NO.
125 110 2P+E SV 2125-4
240 2P+E SV 2125-6
415 3P+E SV 3125-6
415 3P+N+E SV 4125-6

Other configurations of BS EN 60 309/BS 4343 are available on request
