Multi Sockets
IES distribute Multi Sockets and the GARO range of industrial Plugs & Sockets.
GARO Plugs and Sockets are tested and certified in compliance with the following international and national standards among others: IEC 60 309-2, IEC 60 309-1, SS EN 60309-2, CEE17, SEMKO 117, VDE 0623, BS 4343, EN 50 250.
1 GANG SOCKET – IP44 SPLASHPROOF 16AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | N 1216-4 |
| 240 | 2P+E | N 1216-6 | |
| 415 | 3P+E | N 1316-6 | |
| 415 | 3P+N+E | N 1416-6 |
1 GANG SOCKET – IP44 SPLASHPROOF 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | N 1232-4 |
| 240 | 2P+E | N 1232-6 | |
| 415 | 3P+E | N 1332-6 | |
| 415 | 3P+N+E | N 1432-6 |

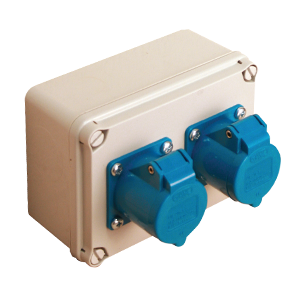

2 GANG SOCKET – IP44 SPLASHPROOF 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | N 2216-4 |
| 240 | 2P+E | N 2216-6 | |
| 415 | 3P+E | N 2316-6 | |
| 415 | 3P+N+E | N 2416-6 |
2 GANG SOCKET – IP44 SPLASHPROOF 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | N 2232-4 |
| 240 | 2P+E | N 2232-6 | |
| 415 | 3P+E | N 2332-6 | |
| 415 | 3P+N+E | N 2432-6 |
1 GANG SOCKET – IP67 WATERTIGHT 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | N 1216-4 |
| 240 | 2P+E | N 1216-6 | |
| 415 | 3P+E | N 1316-6 | |
| 415 | 3P+N+E | N 1416-6 |
1 GANG SOCKET – IP67 WATERTIGHT 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | N 1232-4 |
| 240 | 2P+E | N 1232-6 | |
| 415 | 3P+E | N 1332-6 | |
| 415 | 3P+N+E | N 1432-6 |

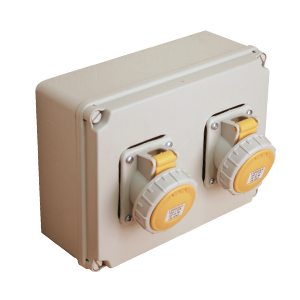

2 GANG SOCKET – IP67 WATERTIGHT 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | NV 2216-4 |
| 240 | 2P+E | NV 2216-6 | |
| 415 | 3P+E | NV 2316-6 | |
| 415 | 3P+N+E | NV 2416-6 |
2 GANG SOCKET – IP67 WATERTIGHT 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | NV 2232-4 |
| 240 | 2P+E | NV 2232-6 | |
| 415 | 3P+E | NV 2332-6 | |
| 415 | 3P+N+E | NV 2432-6 |
3 GANG SOCKET – IP44 SPLASHPROOF 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | N 3216-4 |
| 240 | 2P+E | N 3216-6 | |
| 415 | 3P+E | N 3316-6 | |
| 415 | 3P+N+E | N 3416-6 |
3 GANG SOCKET – IP44 SPLASHPROOF 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | N 3232-4 |
| 240 | 2P+E | N 3232-6 | |
| 415 | 3P+E | N 3332-6 | |
| 415 | 3P+N+E | N 3432-6 |
4 GANG SOCKET – IP44 SPLASHPROOF 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | N 4216-4 |
| 240 | 2P+E | N 4216-6 | |
| 415 | 3P+E | N 4316-6 | |
| 415 | 3P+N+E | N 4416-6 |
4 GANG SOCKET – IP44 SPLASHPROOF 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | N 4232-4 |
| 240 | 2P+E | N 4232-6 | |
| 415 | 3P+E | N 4332-6 | |
| 415 | 3P+N+E | N 4432-6 |
3 GANG SOCKET – IP67 WATERTIGHT 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | NV 3216-4 |
| 240 | 2P+E | NV 3216-6 | |
| 415 | 3P+E | NV 3316-6 | |
| 415 | 3P+N+E | NV 3416-6 |
3 GANG SOCKET – IP67 WATERTIGHT 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | NV 3232-4 |
| 240 | 2P+E | NV 3232-6 | |
| 415 | 3P+E | NV 3332-6 | |
| 415 | 3P+N+E | NV 3432-6 |
4 GANG SOCKET – IP67 WATERTIGHT 16 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 16 | 110 | 2P+E | NV 4216-4 |
| 240 | 2P+E | NV 4216-6 | |
| 415 | 3P+E | NV 4316-6 | |
| 415 | 3P+N+E | NV 4416-6 |
4 GANG SOCKET – IP67 WATERTIGHT 32 AMP
| AMPS | VOLTS | PINS | IES PART NO. |
|---|
| 32 | 110 | 2P+E | NV 4232-4 |
| 240 | 2P+E | NV 4232-6 | |
| 415 | 3P+E | NV 4332-6 | |
| 415 | 3P+N+E | NV 4432-6 |
