RCBOs
RCBO’s are Residual Current Breakers with Over-Current protection. They protect against two types of fault and combines the functionality of an MCB and RCD.
- Type AC – Type AC RCBOs detect 50/60Hz AC and are designed for general use.
- Type A – Type A RCBOs detect 50/60Hz AC and pulsating DC. Type A RCBOs are designed to work with applications where pulsating DC current is generated.
- Type B – Type B RCBOs detect 50/60Hz AC, high-frequency AC, pulsating DC and smooth DC currents. Type B RCBOs are designed to work with applications such as Electric Vehicle chargers, Medical Devices and Solar Panels.

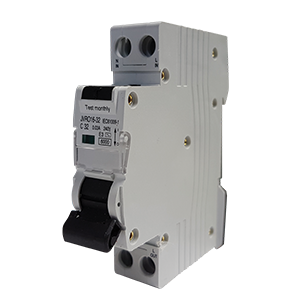

RCBO 2 POLE 1 MODULE
| IES PART NO. | DESCRIPTION |
|---|
| CPRO-6/1/030 | 6Amp 2p 30mA |
| CPRO-10/1/030 | 10Amp 2p 30mA |
| CPRO-16/1/030 | 16Amp 2p 30mA |
| CPRO-20/1/030 | 20Amp 2p 30mA |
| CPRO-25/1/030 | 25Amp 2p 30mA |
| CPRO-32/1/030 | 32Amp 2p 30mA |
| CPRO-40/1/030 | 40Amp 2p 30mA |
RCBO 2 POLE 2 MODULE
| IES PART NO. | DESCRIPTION |
|---|
| CPRO-6/2/030 | 6Amp 2p 30mA |
| CPRO-10/2/030 | 10Amp 2p 30mA |
| CPRO-16/2/030 | 16Amp 2p 30mA |
| CPRO-20/2/030 | 20Amp 2p 30mA |
| CPRO-25/2/030 | 25Amp 2p 30mA |
| CPRO-32/2/030 | 32Amp 2p 30mA |
| CPRO-40/2/030 | 40Amp 2p 30mA |

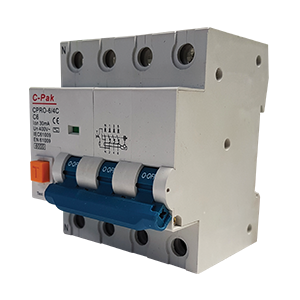

RCBO 4 POLE 4 MODULE
| IES PART NO. | DESCRIPTION |
|---|
| CPRO-6/4/030 | 6Amp 2p 30mA |
| CPRO-10/4/030 | 10Amp 2p 30mA |
| CPRO-16/4/030 | 16Amp 2p 30mA |
| CPRO-20/4/030 | 20Amp 2p 30mA |
| CPRO-25/4/030 | 25Amp 2p 30mA |
| CPRO-32/4/030 | 32Amp 2p 30mA |
| CPRO-40/4/030 | 40Amp 2p 30mA |
More than just a simple sales service
Our qualified staff are on hand to answer any technical questions you may have
