Enclosed Combination Switchfuses
IES distribute Enclosed Combination Switchfuses and the Socomec range of Switchgear.
Enclosed Combination Switchfuses ensure on-load breaking and making of circuits, protect against overcurrents and safely isolate all low-voltage electrical circuits. They provide protection against contact with live parts and environmental elements such as dust, water and other hazards. They enable the shutdown and isolation of the power supply as close to the equipment as possible.

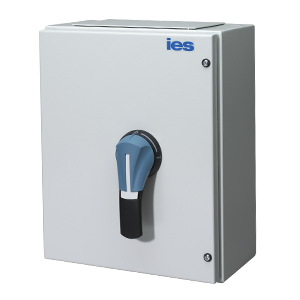

METAL IP55* – 3 POLE AND NEUTRAL
| IES PART NO. | DESCRIPTION | DIMENSIONS |
|---|
| 425020 | 3P+N 20 Amp IP54 | 215(h) 180(w) x 179(d) |
| 425032 | 3P+N 32 Amp IP54 | 215(h) x 180(w) x 179(d) |
| 425063 | 3P+N 63 Amp | 300(h) x 270(w) x 194(d) |
| 425100 | 3P+N 100 Amp | 395(h) x 320(w) x 220(d) |
| 425160 | 3P+N 160 Amp | 395(h) x 320(w) x 220(d) |
| 425200 | 3P+N 200 Amp | 395(h) x 320(w) x 220(d) |
| 425250 | 3P+N 250 Amp | 600(h) x 450(w) x 320(d) |
| 425400 | 3P+N 400 Amp | 600(h) x 450(w) x 320(d) |
| 425630 | 3P+N 630 Amp | 750(h) x 550(w) x 411(d) |
METAL IP55* – 4 POLE
| IES PART NO. | DESCRIPTION | DIMENSIONS |
|---|
| 426020 | 4P 20 Amp IP54 | 215(h) x 180(w) x 179(d) |
| 426032 | 4P 32 Amp IP54 | 215(h) x 180(w) x 179(d) |
| 426063 | 4P 63 Amp | 300(h) x 270(w) x 194(d) |
| 426100 | 4P 100 Amp | 395(h) x 320(w) x 220(d) |
| 426160 | 4P 160 Amp | 395(h) x 320(w) x 220(d) |
| 426200 | 4P 200 Amp | 395(h) x 320(w) x 220(d) |
| 426250 | 4P 250 Amp | 600(h) x 450(w) x 320(d) |
| 426400 | 4P 400 Amp | 600(h) x 450(w) x 320(d) |
| 426630 | 4P 630 Amp | 750(h) x 550(w) x 411(d) |
EXTENSION BOXES – FOR USE WITH SWITCHFUSES
| IES PART NO. | SUITABLE FOR | DIMENSIONS |
|---|
| EX03 | 100, 160, 200A | 275(h) x 320(w) x 175(d) |
| EX04 | 250, 400A | 275(h) x 450(w) x 275(d) |
| EX05 | 630A | 275(h) x 550(w) x 300(d) |
SWITCHFUSE INTERNAL DIMENSIONS
| IES PART NO. | A | B | C |
|---|
| 425020 | 58.5 | 58.5 | – |
| 425032 | 58.5 | 58.5 | – |
| 425063 | 97 | 97 | – |
| 425100 | 127 | 127 | 8.5 |
| 425160 | 127 | 127 | 8.5 |
| 425200 | 127 | 127 | 8.5 |
| 425250 | 217 | 217 | 11 |
| 425400 | 214 | 214 | 11 |
| 425630 | 245 | 245 | 13 |
More than just a simple sales service
Our qualified staff are on hand to answer any technical questions you may have
